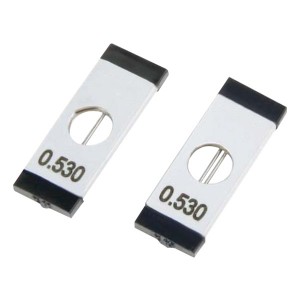

3-WIRES

Category: Micrometer

Type: Micrometer Accessories

Code: 530-0170-11 530-0195-11 530-0220-11...

Short Description:

■ Used with standard outside micrometers to

measure pitch diameter of screw threads
■ Diameter accuracy: ±0.5μm
■ Cylindricity: 1μm
■ Hardness: HRC60
■ Scope of application: outside diameter of
thread ≤50mm

Send Email To Us Download As PDF

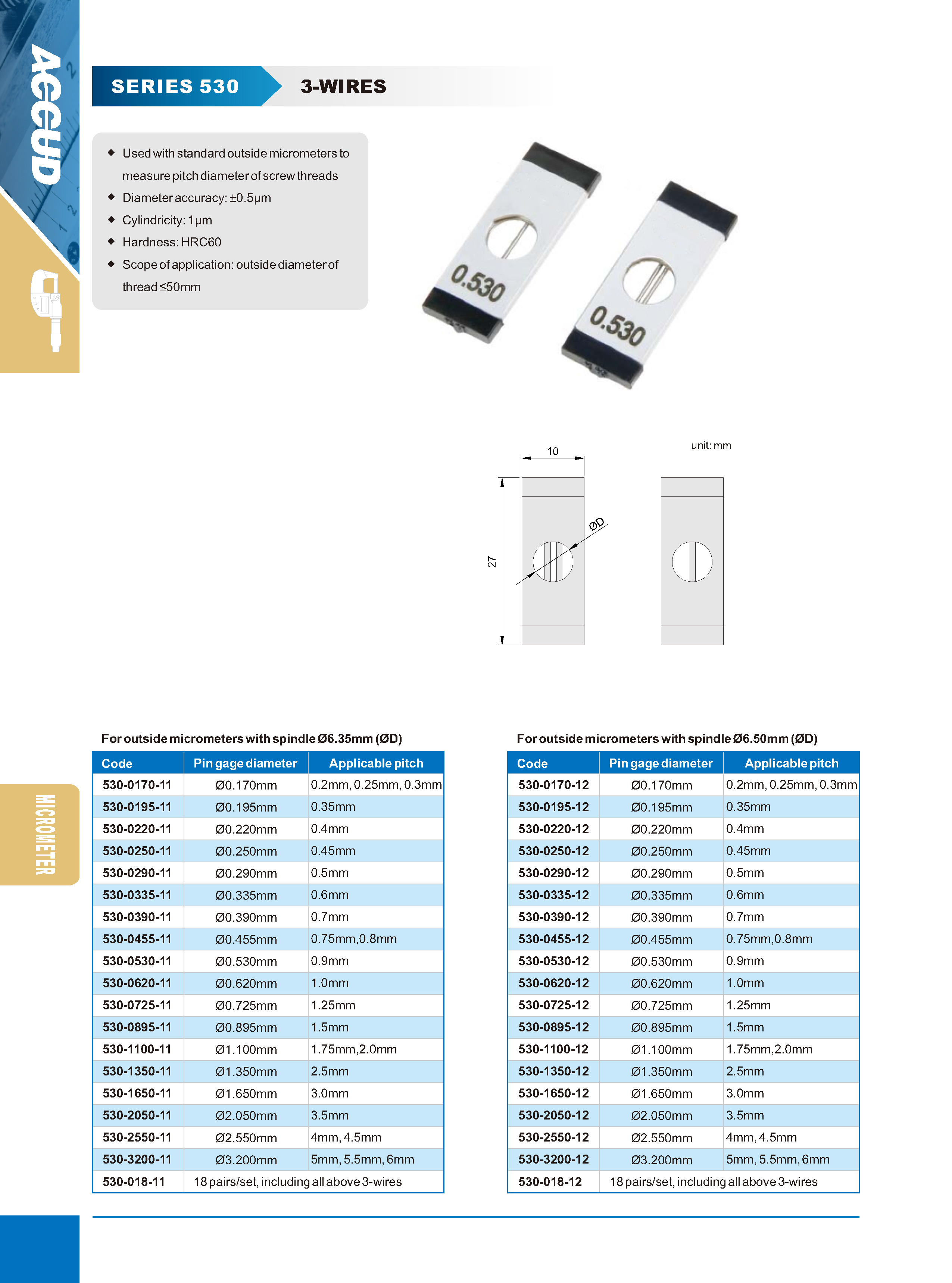

Code

Video

Product Detail

530-0170-11 530-0195-11 530-0220-11 530-0250-11
530-0290-11 530-0335-11 530-0390-11 530-0455-11
530-0530-11 530-0620-11 530-0725-11 530-0895-11
530-1100-11 530-1350-11 530-1650-11 530-2050-11
530-2550-11 530-3200-11 530-0170-12 530-0195-12
530-0220-12 530-0250-12 530-0290-12 530-0335-12
530-0390-12 530-0455-12 530-0530-12 530-0620-12
530-0725-12 530-0895-12 530-1100-12 530-1350-12
530-1650-12 530-2050-12 530-2550-12 530-3200-12
530-018-11 530-018-12
