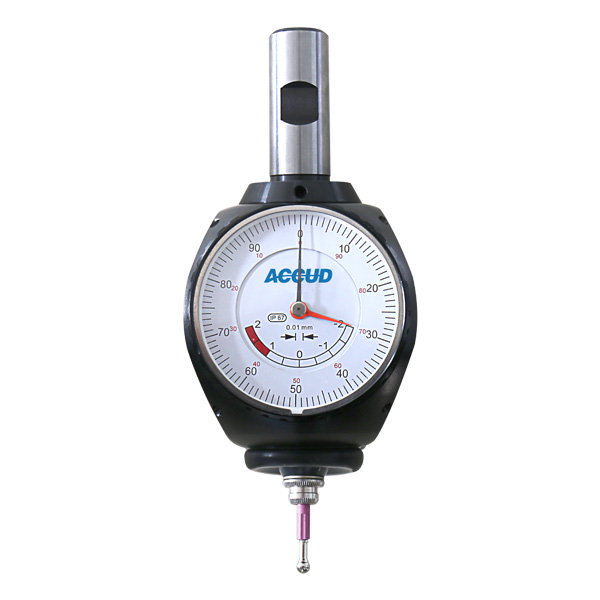

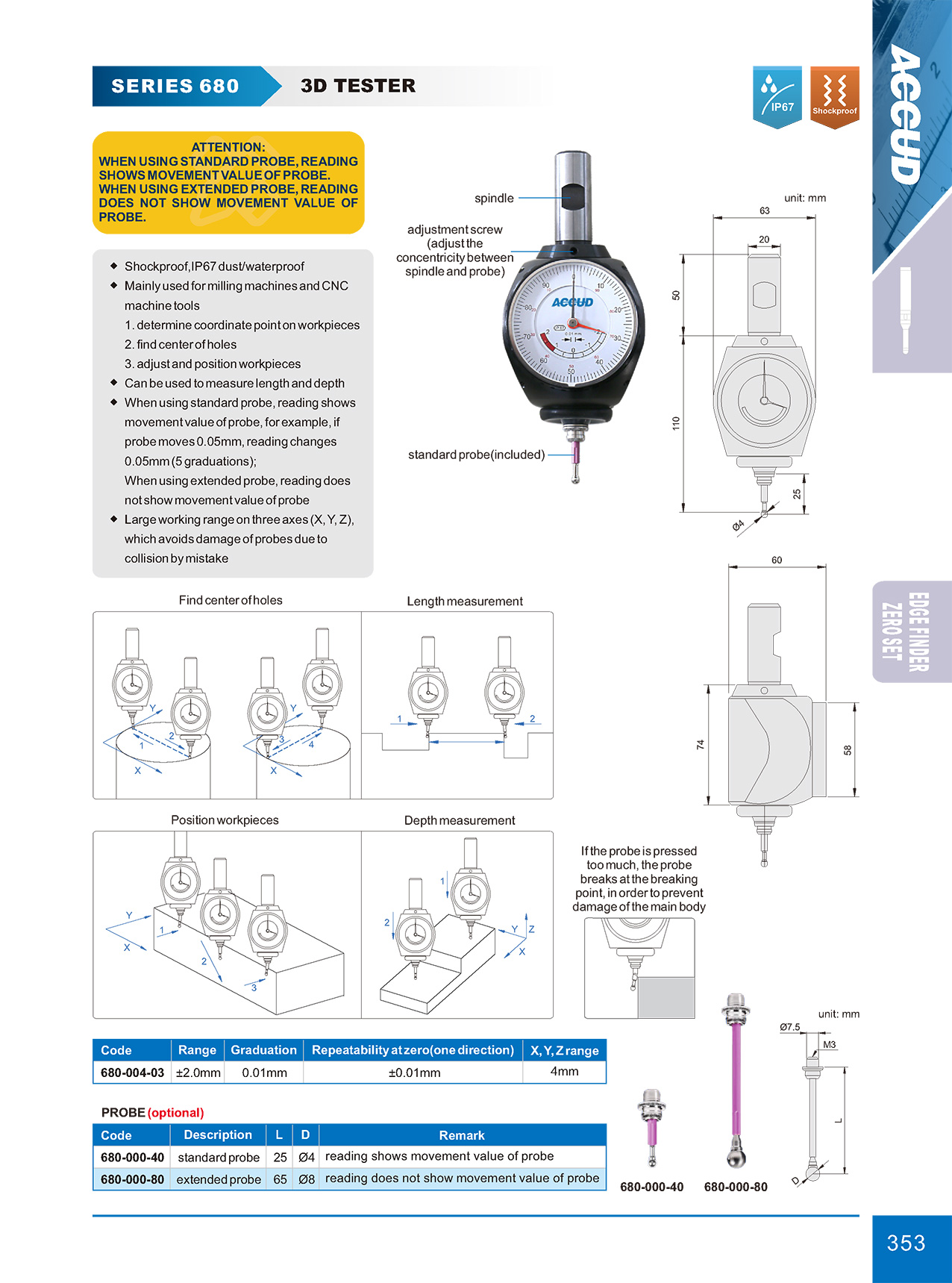

■ Shockproof,IP67 dust/waterproof ■ Mainly used for milling machines and CNC
machine tools
1. determine coordinate point on workpieces
2. find center of holes
3. adjust and position workpieces ■ Can be used to measure length and depth ■ When using standard probe, reading shows
movement value of probe, for example, if
probe moves 0.05mm, reading changes
0.05mm (5 graduations);
When using extended probe, reading does
not show movement value of probe ■ Large working range on three axes (X, Y, Z),
which avoids damage of probes due to
collision by mistake
