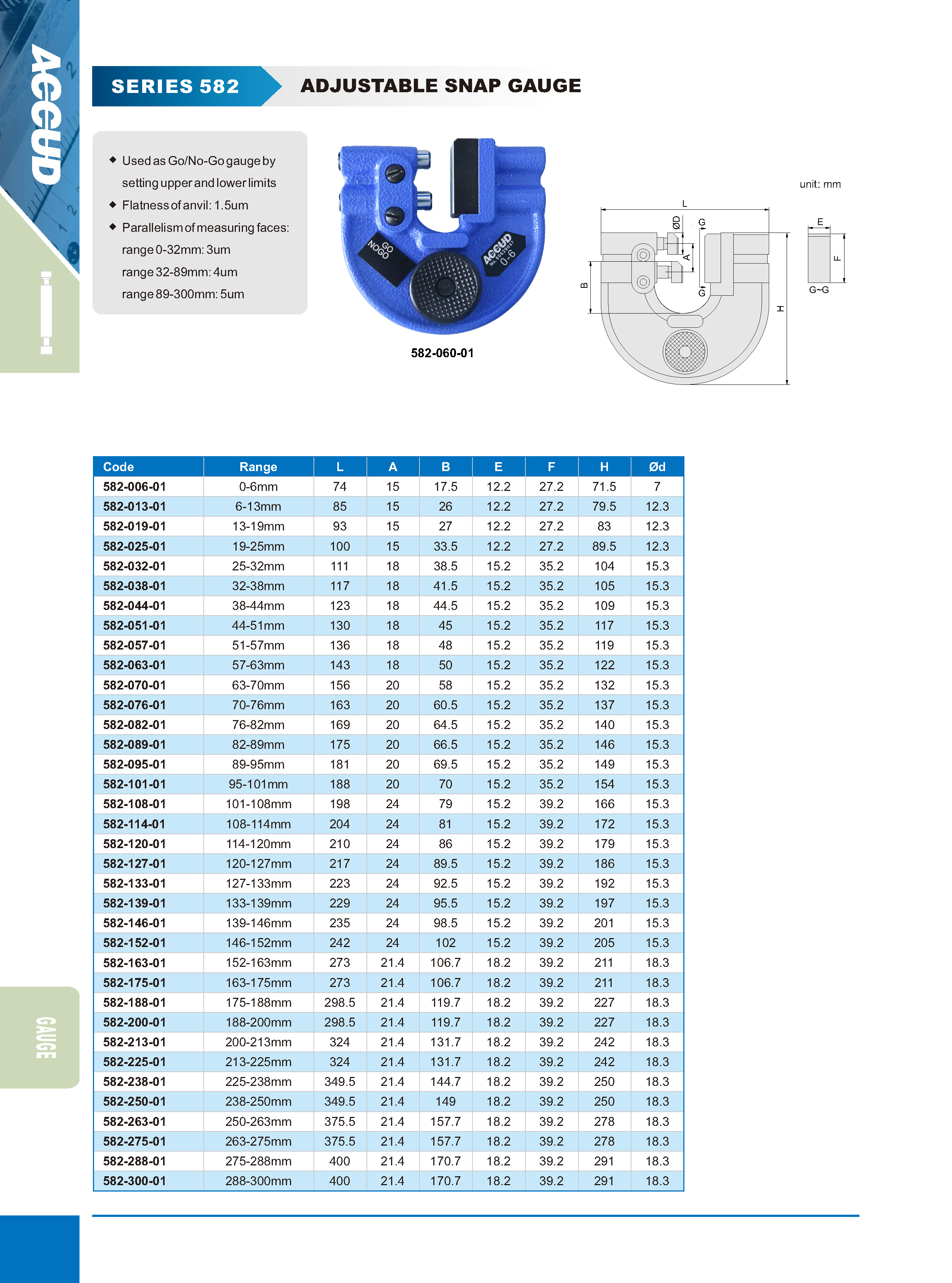

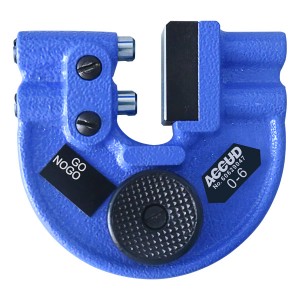

ADJUSTABLE SNAP GAUGE

Category: Standard Gauge

Type: Limit Snap Gague

Code: 582-006-01 582-013-01 582-019-01...

Short Description:

■ Used as Go/No-Go gauge by

setting upper and lower limits
■ Flatness of anvil: 1.5um
■ Parallelism of measuring faces:
range 0-32mm: 3um
range 32-89mm: 4um
range 89-300mm: 5um

Send Email To Us Download As PDF

Code

Video

Product Detail

582-006-01 582-013-01 582-019-01 582-025-01
582-032-01 582-038-01 582-044-01 582-051-01
582-057-01 582-063-01 582-070-01 582-076-01
582-082-01 582-089-01 582-095-01 582-101-01
582-108-01 582-114-01 582-120-01 582-127-01
582-133-01 582-139-01 582-146-01 582-152-01
582-163-01 582-175-01 582-188-01 582-200-01
582-213-01 582-225-01 582-238-01 582-250-01
582-263-01 582-275-01 582-288-01 582-300-01
