WHITWORTH PIPE THREAD GAUGE (G SERIES)

  • Category: Standard Gauge
  • Type: Ring Gauge
  • Code: 535-0125-01 535-0250-01 535-0375-01...


  • Short Description:

    ■ Standard ISO 228

    ■ Material: OHNS
    (Oil Hardened Non-shrinking Steel)
    ■ Stable dimension and wear resistance
    ■ Hardness HRC60-62


    Code

    Video

    Product Detail

    535-0125-01     535-0250-01     535-0375-01     535-0500-01
    535-0625-01     535-0750-01     535-0875-01     535-1000-01
    535-1125-01     535-1250-01     535-1500-01     535-1750-01
    535-2000-01     535-2500-01     535-3000-01     535-4000-01

    536-0125-01     536-0250-01     536-0375-01     536-0500-01
    536-0625-01     536-0750-01     536-0875-01     536-1000-01
    536-1125-01     536-1250-01     536-1500-01     536-1750-01
    536-2000-01     536-2500-01     536-3000-01     536-4000-01

    536-0125-01A     536-0250-01A     536-0375-01A     536-0500-01A
    536-0625-01A     536-0750-01A     536-0875-01A     536-1000-01A
    536-1125-01A     536-1250-01A     536-1500-01A     536-1750-01A
    536-2000-01A     536-2500-01A     536-3000-01A     536-4000-01A


  • Previous:
  • Next:

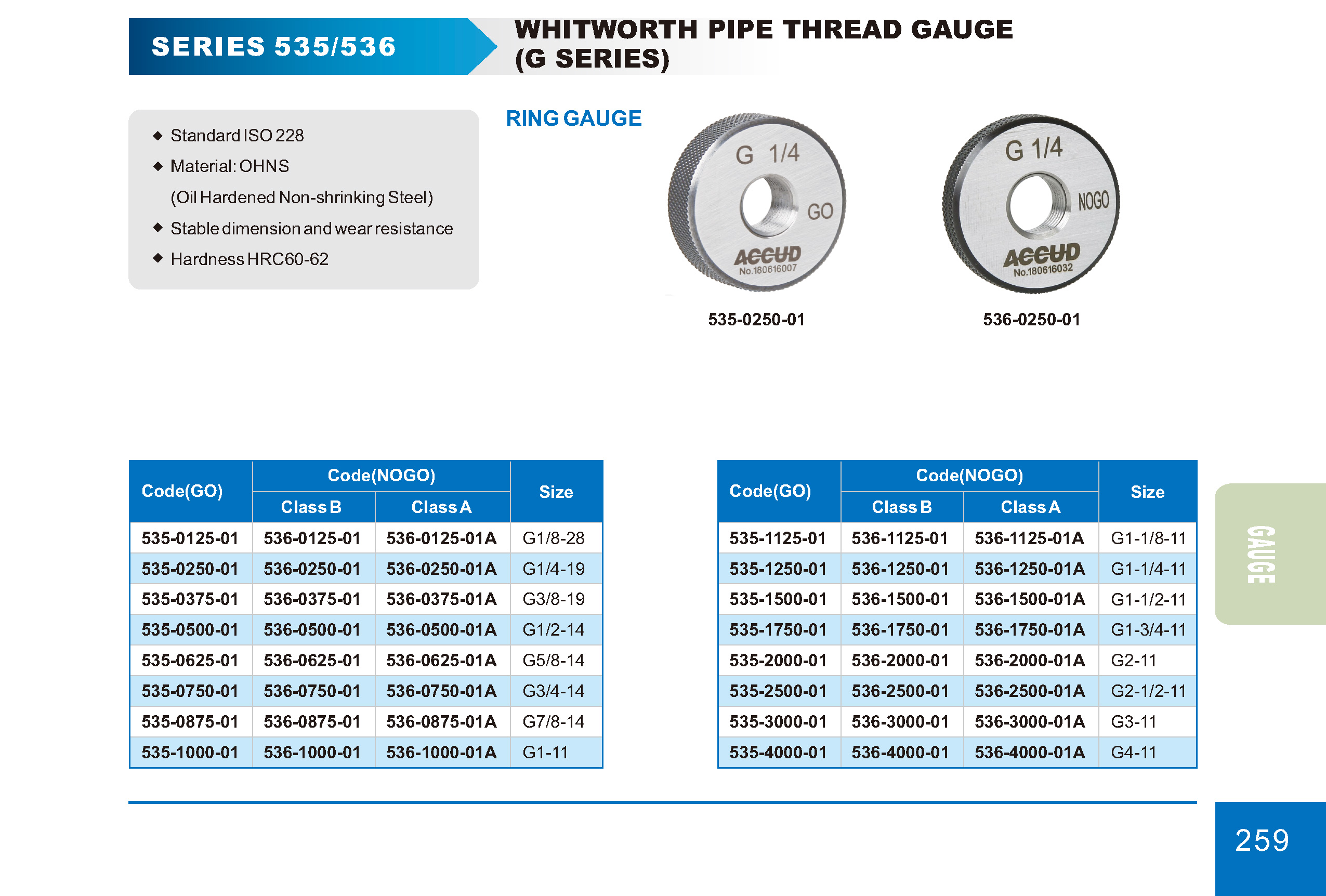

  • 535-EN
